TRS - 112
drukuj
do pdfOpis produktu

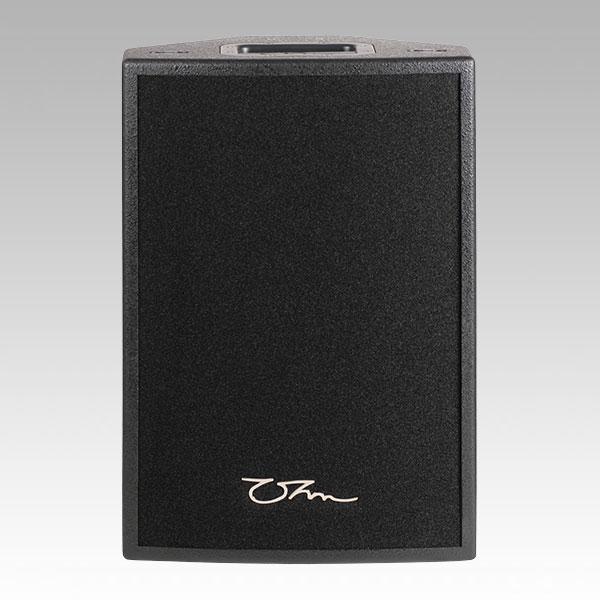

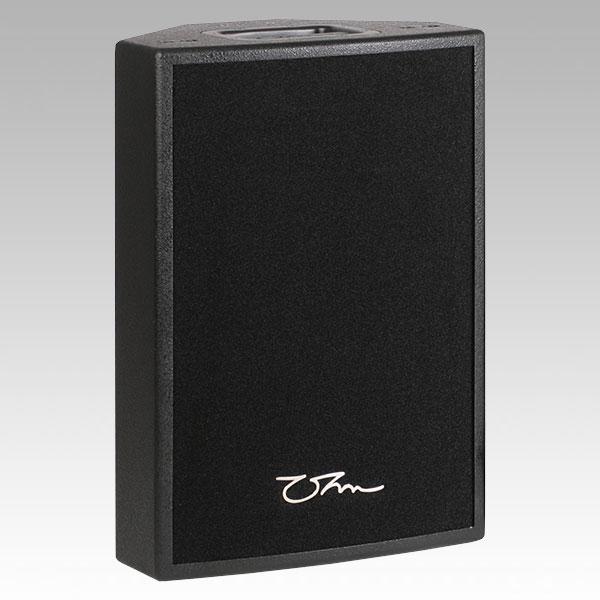

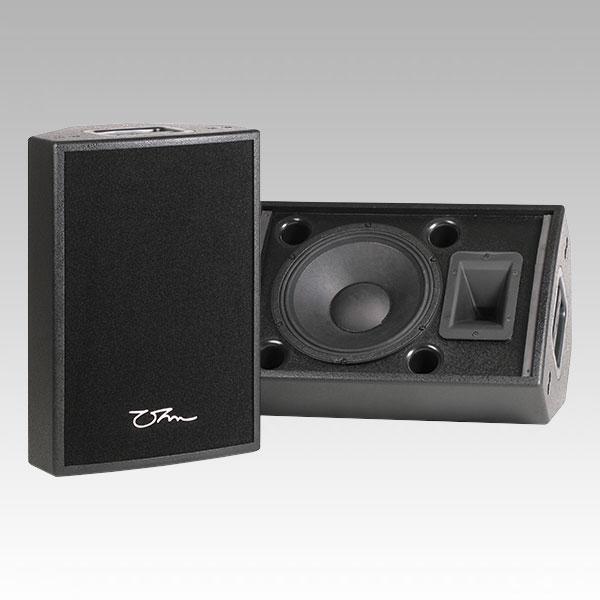

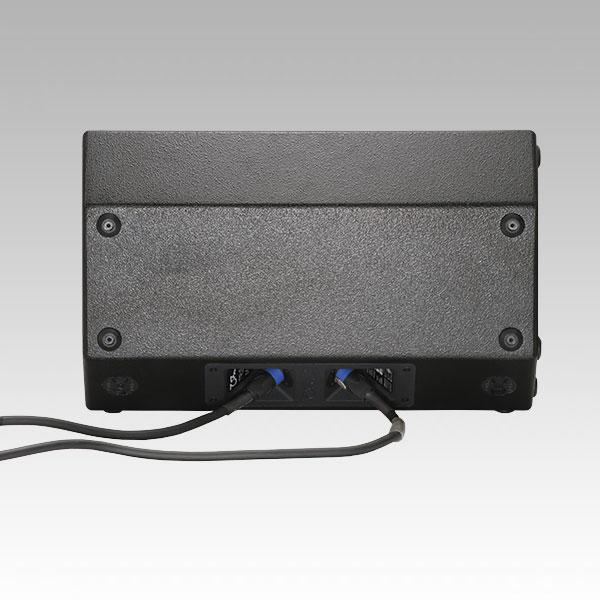

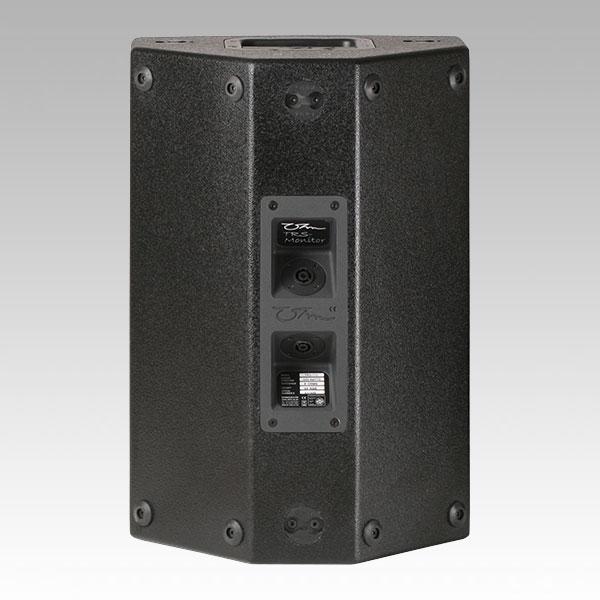

The TRS-112 can be used as both a floor monitor and a front of house system, this is achieved by a cleverly designed cabinet profile. Equally at home as a full range enclosure or incorporated into two-way systems as mid high packs in a sub/sat system. Daisy-chain connection is facilitated by the provision of four connectors, to each side of the cabinet.
Multi tasking is made complete by the built-in flying points and aluminium top hat, totally compatible with the OHM hardware range.

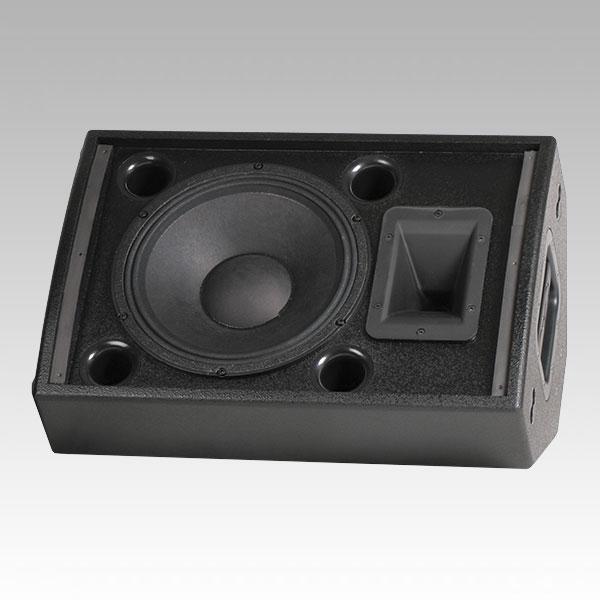

The TRS-112 Houses a 12\" 2 ½ voice coil bass driver and a 1\" compression driver mounted on a 90° x 40° horn flare.
Specyfikacja techniczna
| Impedancja: | 8 [Ω] |
| RMS: | 250 [W] |
| Programme: | 500 [W] |
| SPL (1W/1m): | 104 [dB] |
| Max @ 1m: | 130 [dB] |
| Pasmo przenoszenia (3 dB): | 80 - 20 000 [Hz] |
| Częstotliwość podziału: | 1 900 [Hz] |
| Active crossover HPF: | 110 [Hz] |
| Rozproszenie poziome x pionowe: | 90 x 40 [˚] |
| Wymiary H x W x D: | 575 x 398 x 295 [mm] |
| Waga: | 24 [kg] |
