LM - 6
drukuj
do pdfOpis produktu
Utilising a one inch exit, 44mm voice coil, Compression Driver, that many manufacturers would reserve only for their very expensive ‘high-end’ cabinets, the LM-4, LM-5 and LM-6 perform in a way that belies their affordable price tag. Loaded with proprietary custom made OHM bass-mid drivers that allow precise integration with the CD horn, the result is a smooth, controlled and powerful high SPL Response with outstanding definition and clarity.

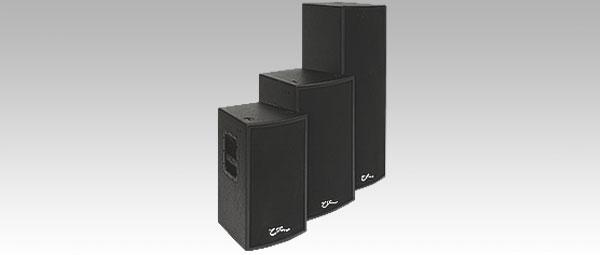

Designed for professional Dj’s, live band applications and custom installs, the LM-4 (12”), LM-5 (15”) and LM-6 (Twin 15”) offer an edge over the competition.
Fitted with twin Neutrik Speakon® compatible connectors, allowing for easy daisy chaining, and sharing the full range of LM features normally expected from products costing considerably more.
In addition to the standard features LM-4, LM-5 and LM- 6 are fitted with flying points, bar handles and are made from 18mm Birch Plywood.
Designed as full range enclosures or for use as mid high packs in sub-woofer, satellite systems.
Produkt dostępny do wyczerpania zapasów!
Specyfikacja techniczna
| impedancja: | 4 [Ω] |
| moc AES (continuous): | 750 [W] |
| moc AES (programme): | 1500 [W] |
| SPL (1W/1m): | 101 [dB] |
| Max @ 1m: | 131 [dB] |
| pasmo przenoszenia (-3 dB): | 47 - 16 300 [Hz] |
| Częstotliwość podziału: | 1 650 [Hz] |
| Active crossover HPF: | 80 [Hz] |
| kąt rozproszenia poziomo x pionowo: | 90 x 50 [˚] |
| wymiary H x W x D: | 1059 x 488 x 400 [mm] |
| waga: | 51.2 [kg] |
