Ersa Minor
drukuj
do pdfOpis produktu

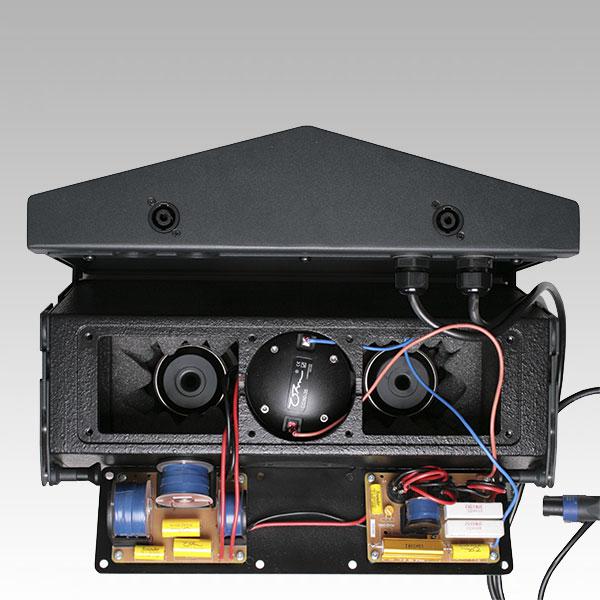

Ersa Minor has been developed following the trend for high powered, small enclosure, portable line array system. Featuring two six inch Neodymium magnet bass units and a one inch compression driver on a proprietary waveguide, the Ersa system offers total versatility and unprecedented performance from enclosures of these dimensions.

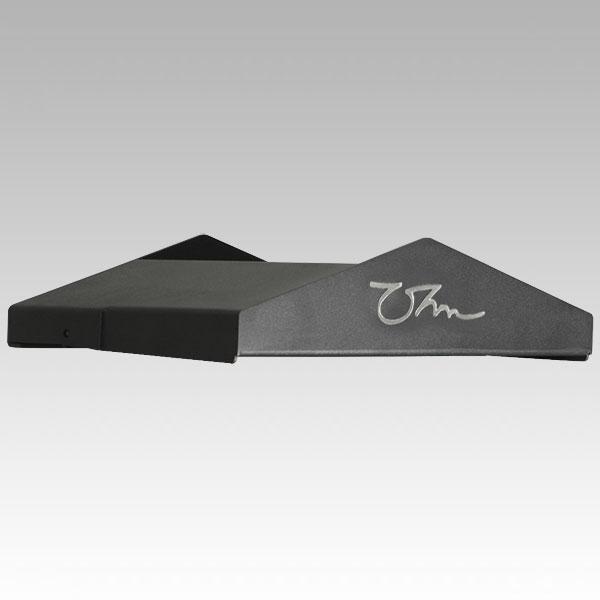

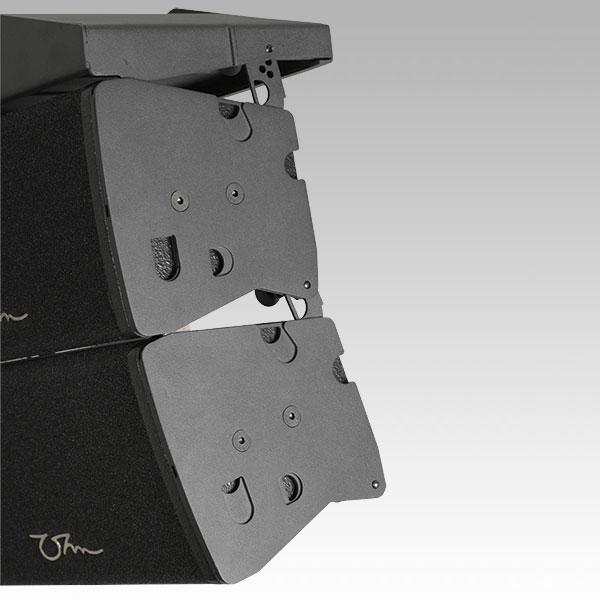

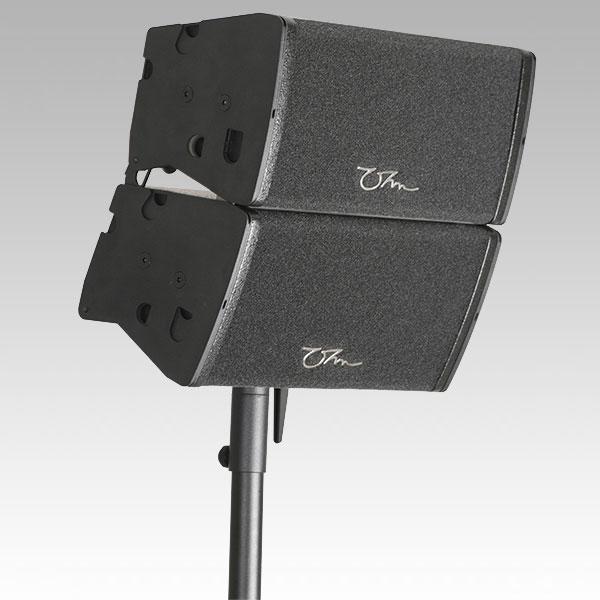

The purpose designed flying system is easy to use and in transport has no protruding parts that can be lost or broken off. The cabinets can equally be used singly or in pairs using the unique stand adaptor or hanging cradle for smaller systems, perfect for conferencing or low profile wide angle room applications.

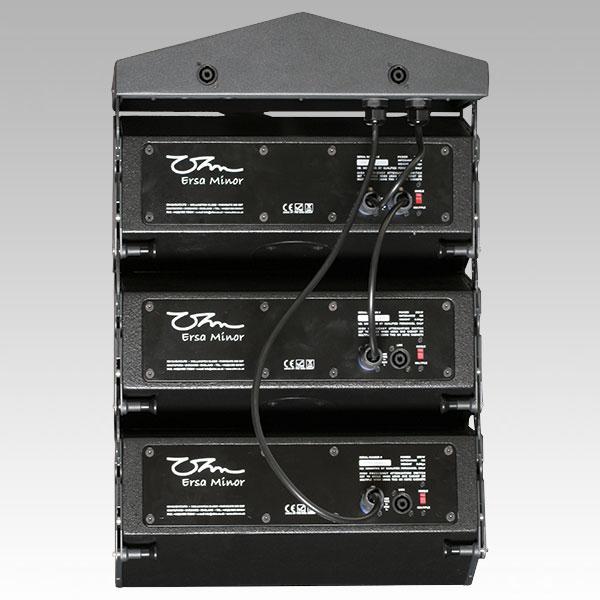

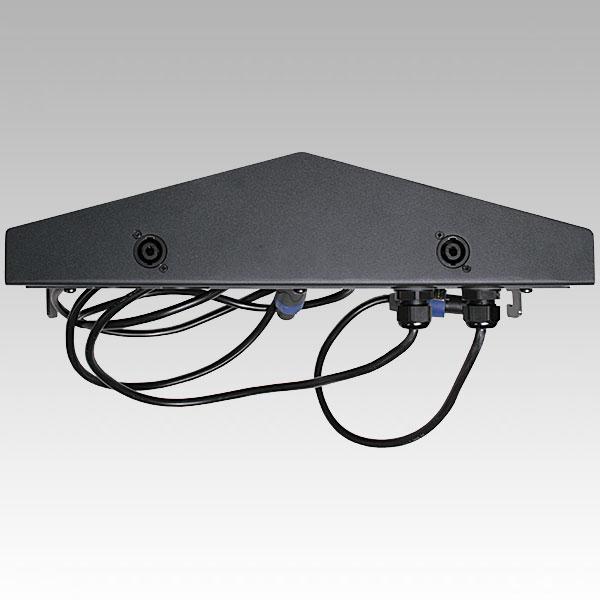

A wide range of options is available for various configurations. The cabinets are fitted with twin Neutrik Speakons allowing for easy daisy chaining and a HF attenuation switch for single or multiple cabinet use.
Specyfikacja techniczna
| Wersja: | HF |
| Impedancja: | 16 [Ω] |
| RMS: | 80 [W] |
| Programme: | 160 [W] |
| SPL (1W/1m): | 109 [dB] |
| Max @ 1m: | 130 [dB] |
| Pasmo przenoszenia (3 dB): | 125 - 20 000 [Hz] |
| Active crossover HPF: | 800 [Hz] |
| Rozproszenie poziome x pionowe: | 120 x 40 [˚] |
| Wymiary H x W x D: | 189 x 410 x 184 [mm] |
| Waga: | 9.6 [kg] |
| Wersja: | LO MID |
| Impedancja: | 32 [Ω] |
| RMS: | 200 [W] |
| Programme: | 400 [W] |
| SPL (1W/1m): | 95 [dB] |
| Max @ 1m: | 120 [dB] |
| Pasmo przenoszenia (3 dB): | 125 - 20 000 [Hz] |
| Active crossover LPF: | 800 [Hz] |
| Active crossover HPF: | 125 [Hz] |
| Rozproszenie poziome x pionowe: | 120 x 40 [˚] |
| Wymiary H x W x D: | 189 x 410 x 184 [mm] |
| Waga: | 9.6 [kg] |
